Prabhavali Canopy Blueprint 3D Model CAD Blueprint

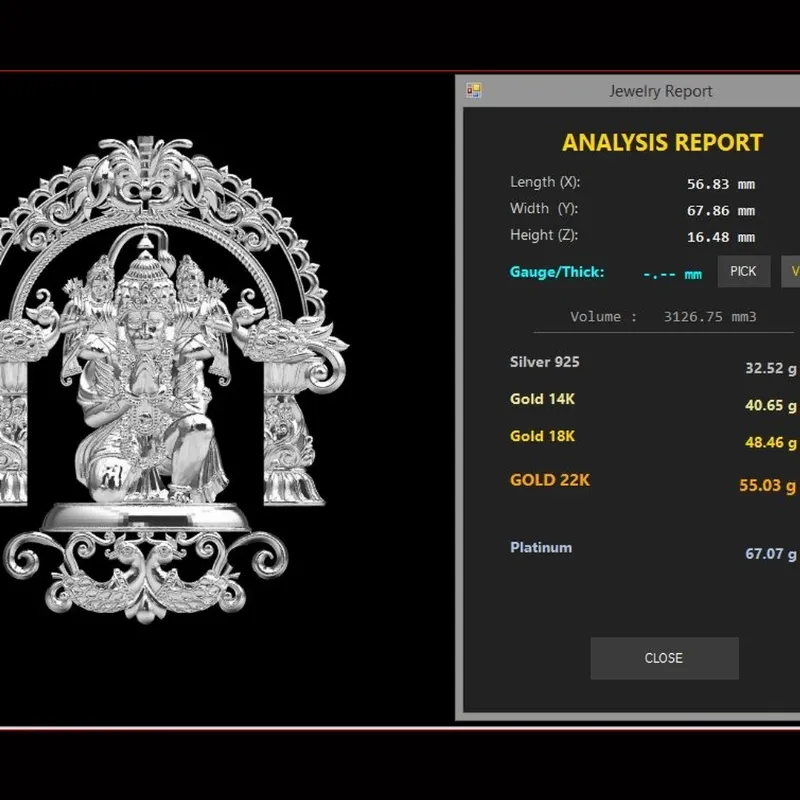

3D MODEL SIZE:- 56.83 x 67.86
VOLUME: 3126.75 mm3
Gold 22K: 55.03 g
FILE TYPE :- STL

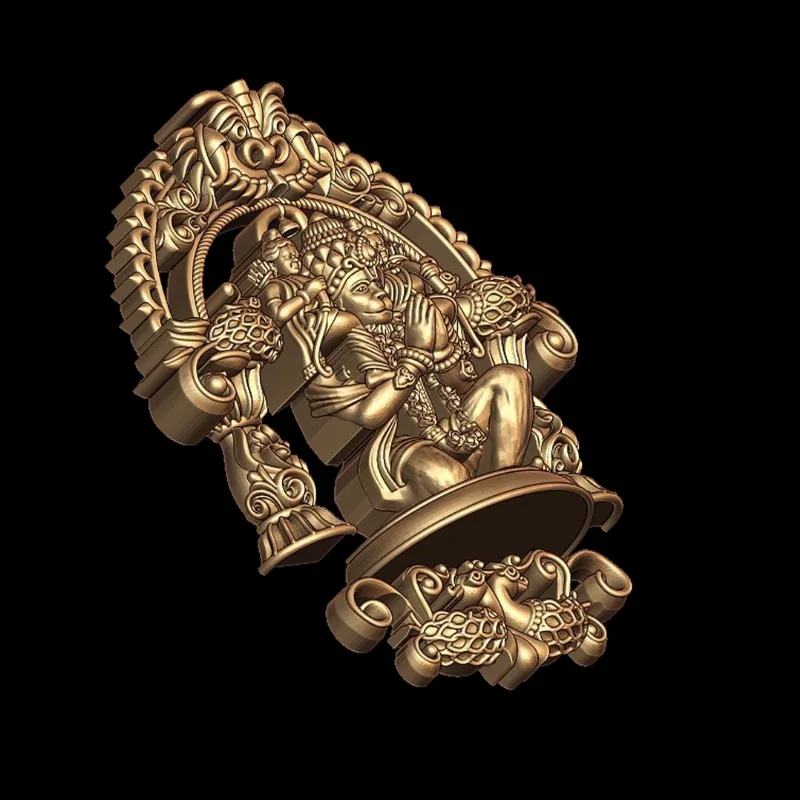

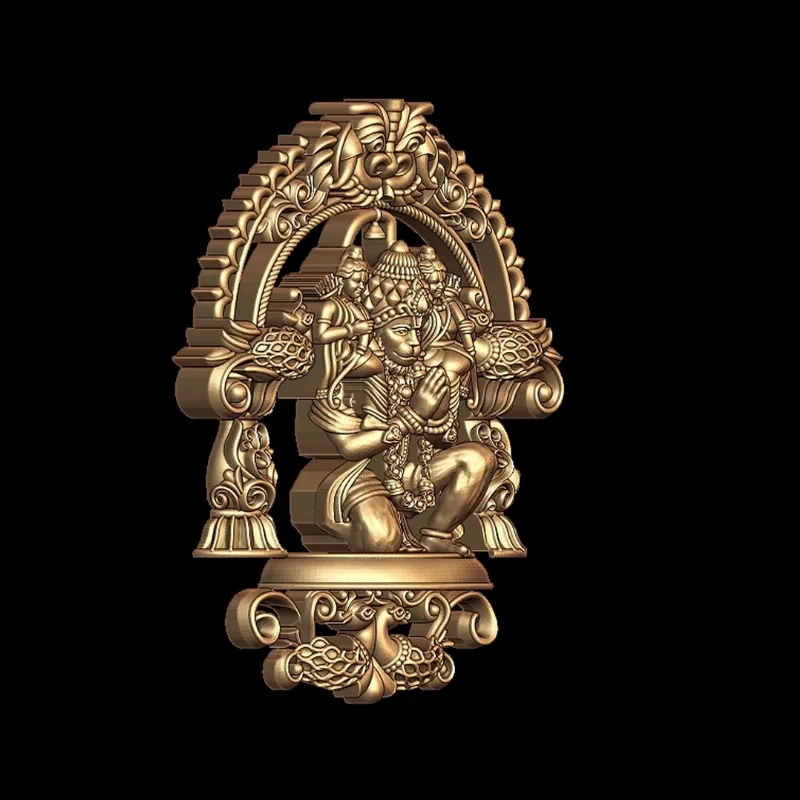

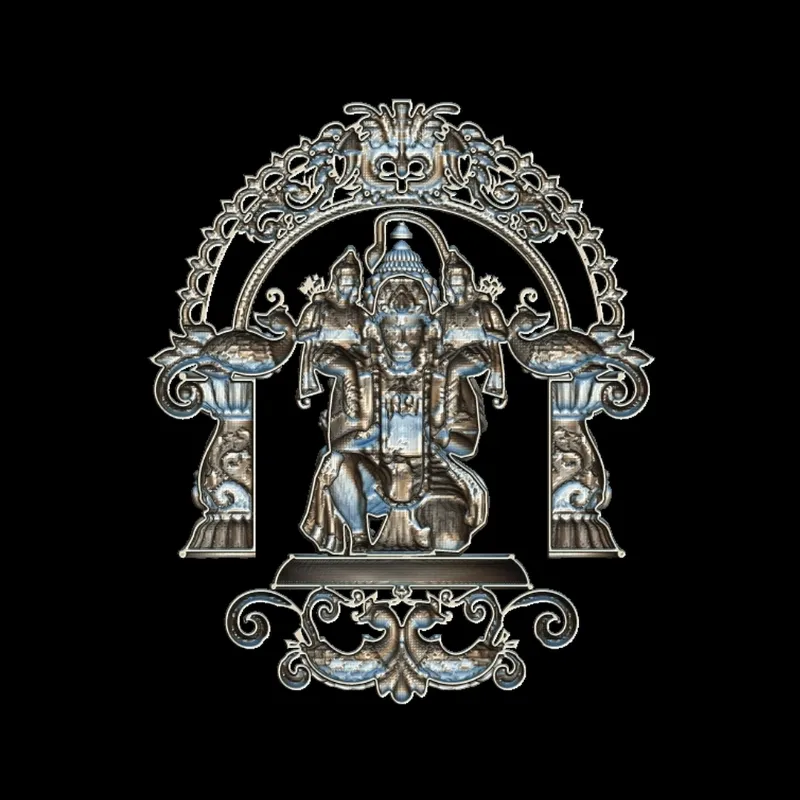

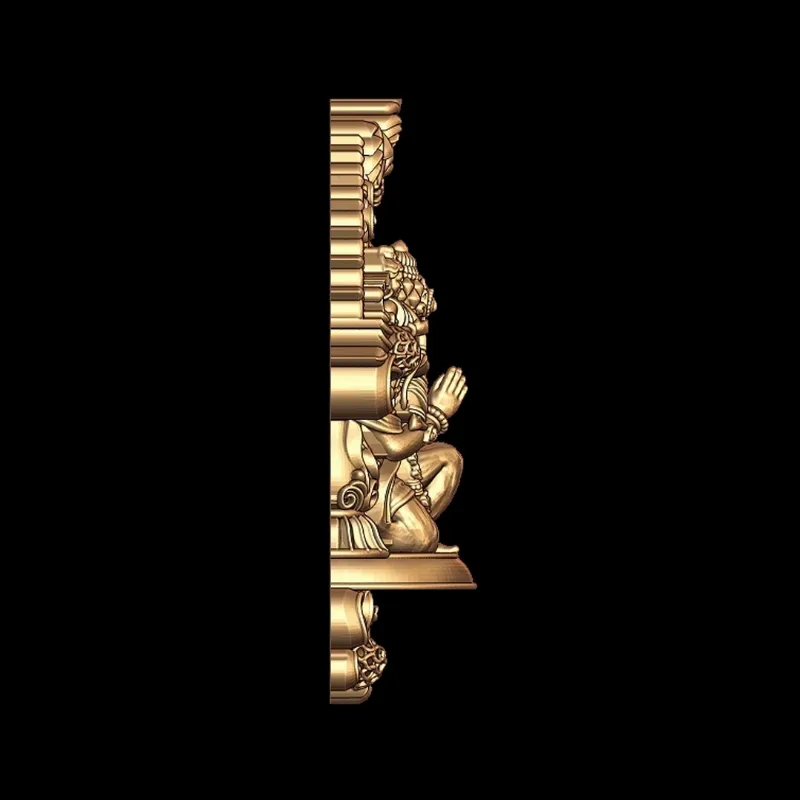

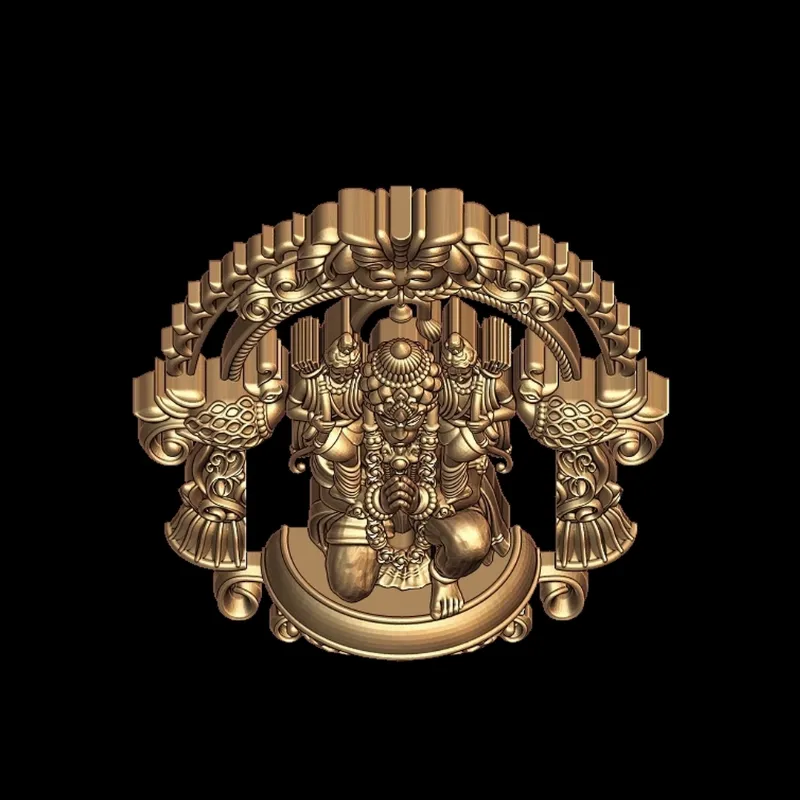

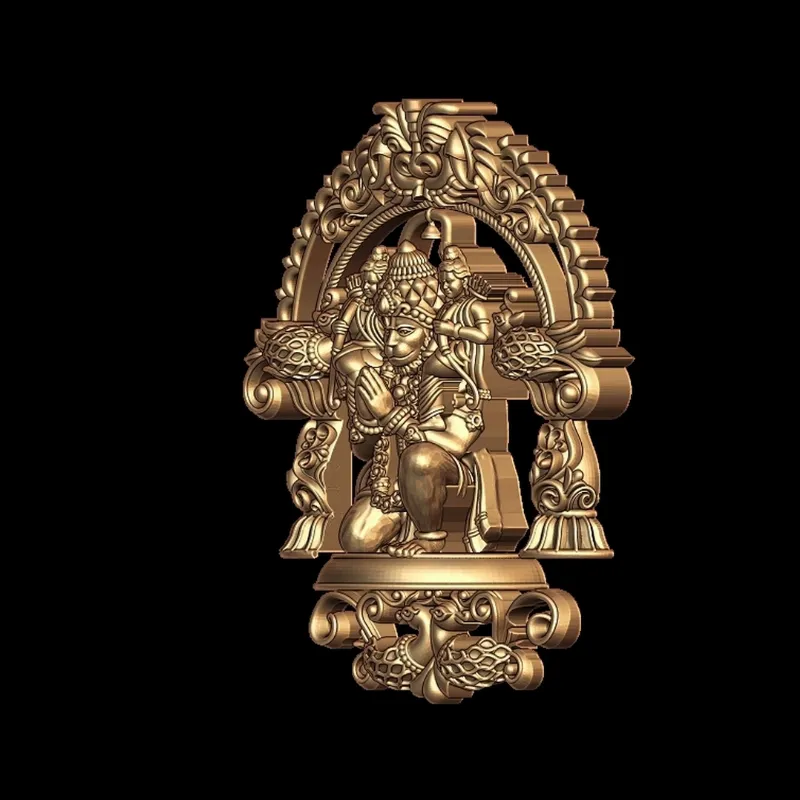

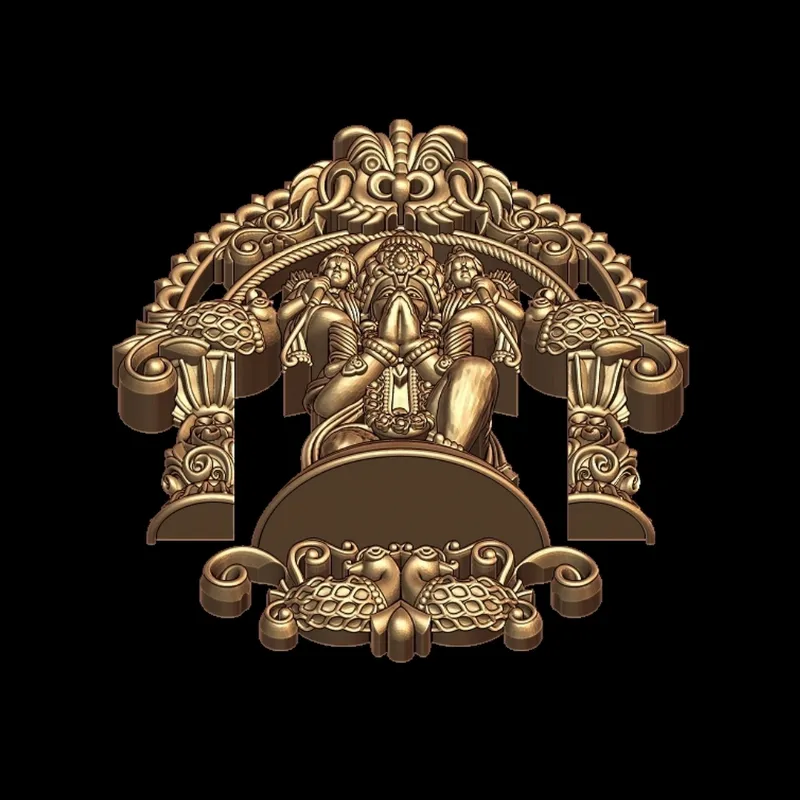

The central figure shows Hanuman in a kneeling pose with folded hands (Anjali Mudra), flanked by the twin princes resting on his shoulders. The protective frame features a detailed Kirtimukha crest at the apex, pillar-mounted peacocks on the sides, and a symmetrical twin peacock flourish at the base. Engineered with precise manufacturing metrics—measuring 56.83 x 67.86 mm with a solid volume of 3126.75 mm³ and an estimated 22K gold weight of 55.03 grams—this CAD design ensures exceptional structural balance, crisp casting detail, and flawless polishing.

Key Structural & Technical Specifications:

Dimensions: 56.83 mm x 67.86 mm

Volume: 3126.75 mm³

22K Gold Weight: ~55.03 grams

File Format: Manufacturing-Ready STL

Sacred Iconography: Features Hanuman carrying Ram and Lakshman, Kirtimukha Prabhavali archway, pillar peacocks, and dual peacock pedestal base.

Casting & Resin Print Optimization: Fully closed manifold geometry guarantees complete burnout without ash residue or casting defects in gold, silver, or brass investment casting.

(Note: This is a digital CAD file product in STL format for manufacturing purposes. No physical item will be shipped.)
