Square Halo 3D Model Ring Setting CAD File

3D MODEL SIZE:- 5.00 x 5.00 x 3.09
VOLUME: 30.59 mm3
Gold 22K: 0.54
FILE TYPE :- STL

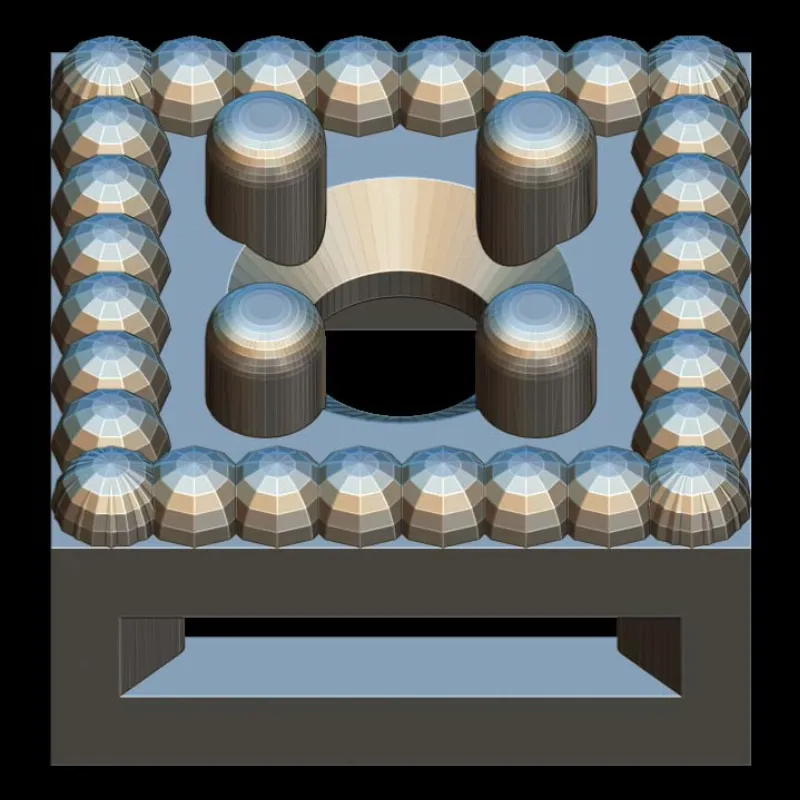

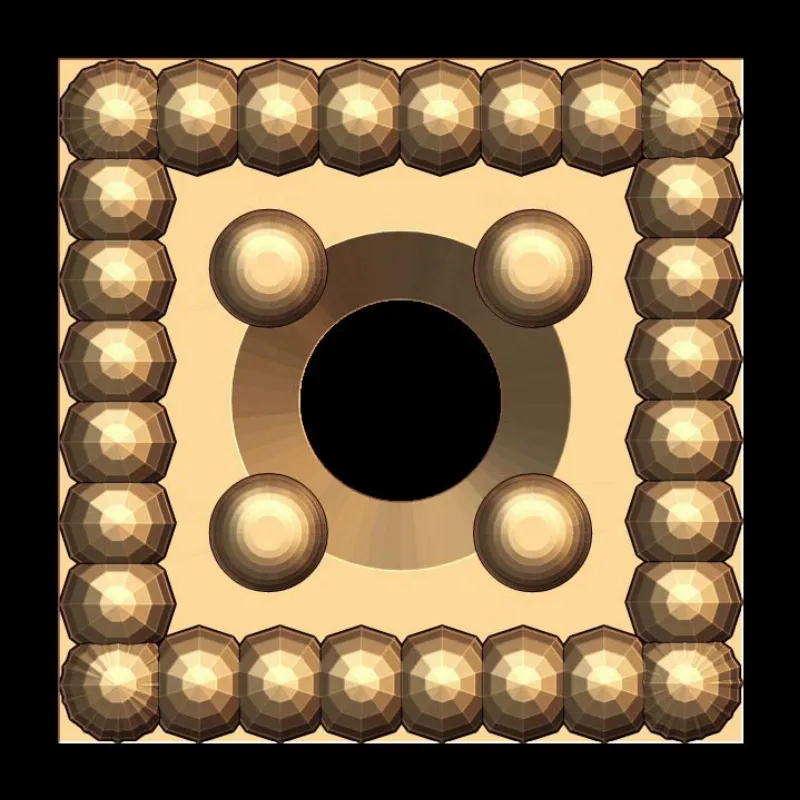

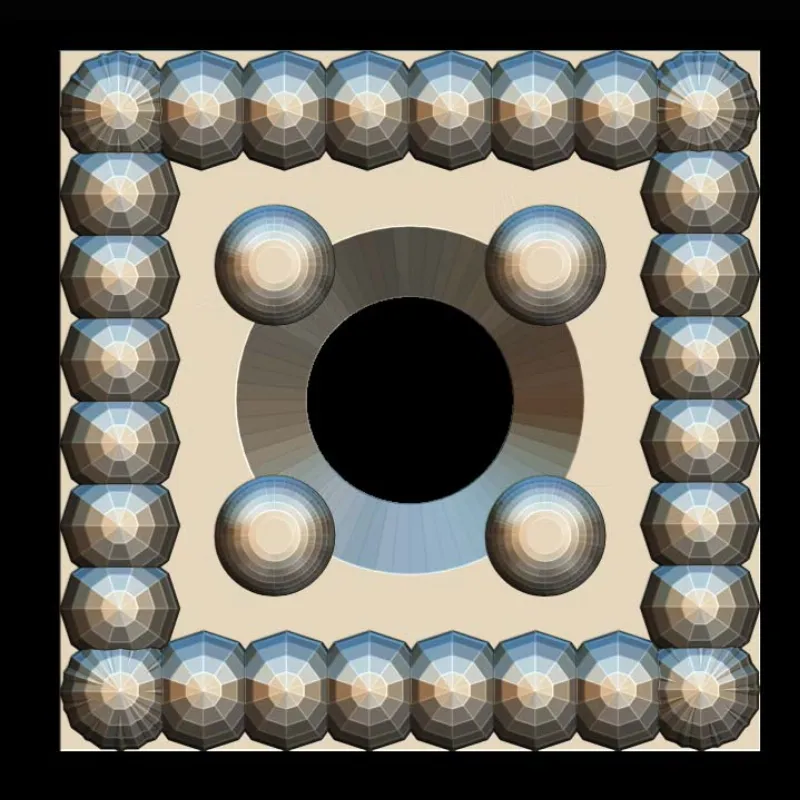

Streamline your custom jewelry production with this professional Square Halo Ring Center Head (Collet) CAD design. This crucial jewelry component is meticulously engineered with 4 robust central prongs to securely seat a central cushion or square-shaped stone, framed beautifully by a micro-bead accent halo border ready for pave setting.

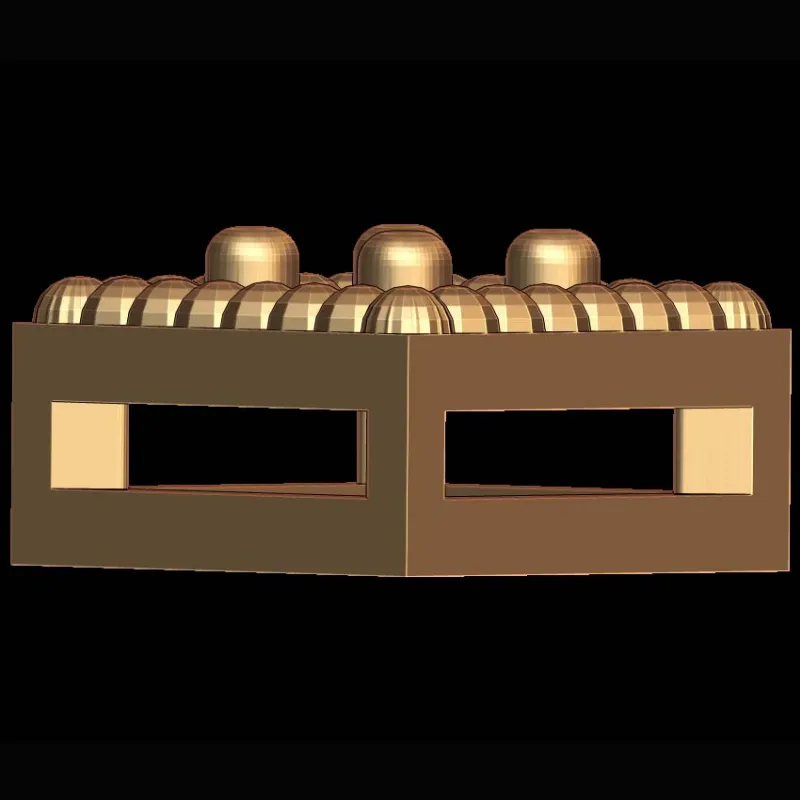

The design also includes open side galleries (hollow slots) on the box base, guaranteeing maximum light entry to enhance stone brilliance while keeping the final casting light and cost-efficient. Fully optimized for high-resolution 3D printing (SLA/DLP) and smooth jewelry casting in gold, platinum, or silver.

Product Specifications & Features:

Component Type: Square Halo Ring Head / Center Setting / Collet

File Format: STL (100% water-tight, high-density mesh)

3D Model Dimensions: 5.00 mm x 5.00 mm x 3.09 mm

Design Volume: 30.59 mm³

Estimated Metal Weight (22K Gold): Approx. 0.54 grams

Production Advantage: Open side gallery box design for easy stone setting, cleaning, and optimal stone sparkle.

Why Choose Our CAD Components?

Flawless Calibration: Perfectly measured layout ensures accurate symmetry for seamless soldering onto various ring shanks or pendant bails.

Casting Optimized: Formulated with ideal wall thickness to ensure smooth gold and silver fluid flow during casting, preventing porosity.

Instant Digital Download: Get instant access to the STL file immediately after checkout and begin printing right away.

Please Note: This is a digital STL file for jewelry manufacturing. No physical metal collet or stones will be shipped.
